YCT series
electromagnetic speed adjustable motor
electromagnetic speed adjustable motor
Product application areas:
GeneraI purpose including cutting machines, pumps, fans, conveyors, machines tools of farm duty and food process.
Product features:
Stepless adjustable speed with constant torque. Ease to operation.
Conditions of Use:
The altitude does not exceed 1000M. The ambient temperature changes with the seasons, but the highest does not exceed +40℃,and the lowest does not fall below -15℃.
Performance data
Installation Dimension
Mounting arrangements
PERFORMANCE DATA 380V 50Hz
| Type | Nominal Output kW |
Rated torque N.m |
Speed Range r/min |
| YCT112-4A | 0.55 | 3.6 | 1230~125 |
| YCT112-4B | 0.75 | 4.9 | 1230~125 |
| YCT132-4A | 1.1 | 7.1 | 1230~125 |
| YCT132-4B | 1.5 | 9.7 | 1230~125 |
| YCT160-4A | 2.2 | 14.1 | 1230~125 |
| YCT160-4B | 3 | 19.2 | 1230~125 |
| YCT180-4A | 4 | 25.2 | 1230~125 |
| YCT200-4A | 5.5 | 36.1 | 1230~125 |
| YCT200-4B | 7.5 | 47.7 | 1230~125 |
| YCT225-4A | 11 | 69 | 1230~125 |
| Type | Nominal Output kW |
Rated torque N.m |
Speed Range r/min |
| YCT225-4B | 15 | 94 | 1250~125 |
| YCT250-4A | 18.5 | 110 | 1320~132 |
| YCT250-4B | 22 | 137 | 1320~132 |
| YCT280-4A | 30 | 189 | 1320~132 |
| YCT315-4A | 37 | 232 | 1320~132 |
| YCT315-4B | 45 | 282 | 1320~132 |
| YCT355-4A | 55 | 344 | 1340~440 |
| YCT355-4B | 75 | 469 | 1340~440 |
| YCT355-4C | 90 | 564 | 1340~600 |
TECHNICAL DATA 380V 50Hz
| Type | CTK-A30 (JD1A-40) |
CTK-A90 (JD1A-90) |
CTK-B30 (JD1B-40) |
CTK-B90 (JD1B-90) |
|
| Input power | VoltageV | 220±10% | |||
| requencyHz | 50±2% | ||||
| Rated OutputDC | VoltageV | ≥80 | |||
| CurrentA | 4 | 6.3 | 4 | 6.3 | |
| Power range of controlled motor kW | 0.55~30 | 37~90 | 0.55~30 | 37~90 | |
| Speed variation ratio% | 2.5 | 1.0 | |||
| Accuracy of speed stability% | ≤1 | ||||
| Terminal Mark | input: 1:phase terminal 2:zero line |
output: 3+ 4- |
techogenerator 5 6 7 |
||
The output current of the controller can be withstanding 20% overload within 10min.

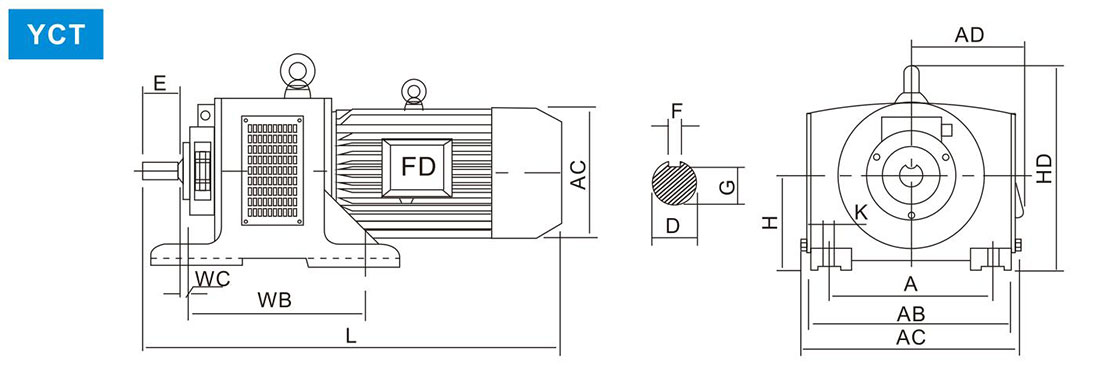

OVERALL&INSTALLATION DIMENSION(mm):
| Type | Mounting Dimension | Overall Dimension | ||||||||||||
| A | WB | WC | E | H | D | F | G | K | AB | AC | AD | HD | L | |
| YCT112-4A | 190 | 210 | 40 | 40 | 112 | 19 | 6 | 15.5 | 12 | 240 | 260 | 150 | 280 | 520 |
| YCT112-4B | 190 | 210 | 40 | 40 | 112 | 19 | 6 | 15.5 | 12 | 240 | 260 | 150 | 280 | 520 |
| YCT132-4A | 216 | 241 | 40 | 50 | 132 | 24 | 8 | 20 | 12 | 285 | 310 | 165 | 330 | 570 |
| YCT132-4B | 216 | 241 | 40 | 50 | 132 | 24 | 8 | 20 | 12 | 285 | 310 | 165 | 330 | 585 |
| YCT160-4A | 254 | 267 | 45 | 60 | 160 | 28 | 8 | 24 | 15 | 330 | 350 | 185 | 385 | 665 |
| YCT160-4B | 254 | 267 | 45 | 60 | 160 | 28 | 8 | 24 | 15 | 330 | 350 | 185 | 385 | 665 |
| YCT180-4A | 279 | 305 | 45 | 60 | 180 | 28 | 8 | 24 | 15 | 365 | 385 | 195 | 430 | 700 |
| YCT200-4A | 318 | 356 | 50 | 80 | 200 | 38 | 10 | 33 | 19 | 410 | 430 | 235 | 485 | 820 |
| YCT200-4B | 318 | 356 | 50 | 80 | 200 | 38 | 10 | 33 | 19 | 410 | 430 | 235 | 485 | 860 |
| YCT225-4A | 356 | 406 | 56 | 110 | 225 | 42 | 12 | 37 | 19 | 465 | 485 | 270 | 545 | 980 |
| YCT225-4B | 356 | 406 | 56 | 110 | 225 | 42 | 12 | 37 | 19 | 465 | 485 | 270 | 545 | 1025 |
| YCT250-4A | 406 | 457 | 63 | 110 | 250 | 48 | 14 | 42.5 | 24 | 520 | 540 | 295 | 595 | 1130 |
| YCT250-4B | 406 | 457 | 63 | 110 | 250 | 48 | 14 | 42.5 | 24 | 520 | 540 | 295 | 595 | 1170 |
| YCT280-4A | 457 | 508 | 70 | 110 | 280 | 55 | 16 | 49 | 24 | 575 | 595 | 320 | 665 | 1280 |
| YCT315-4A | 508 | 560 | 89 | 140 | 315 | 60 | 18 | 53 | 28 | 645 | 670 | 345 | 770 | 1400 |
| YCT315-4B | 508 | 560 | 89 | 140 | 315 | 60 | 18 | 53 | 28 | 645 | 670 | 345 | 770 | 1425 |
| YCT355-4A | 610 | 630 | 108 | 140 | 355 | 65 | 18 | 58 | 28 | 755 | 780 | 390 | 890 | 1550 |
| YCT355-4B | 610 | 630 | 108 | 140 | 355 | 75 | 20 | 67.5 | 28 | 755 | 780 | 420 | 890 | 1630 |
| YCT355-4C | 610 | 630 | 108 | 140 | 355 | 75 | 20 | 67.5 | 28 | 755 | 780 | 420 | 890 | 1680 |

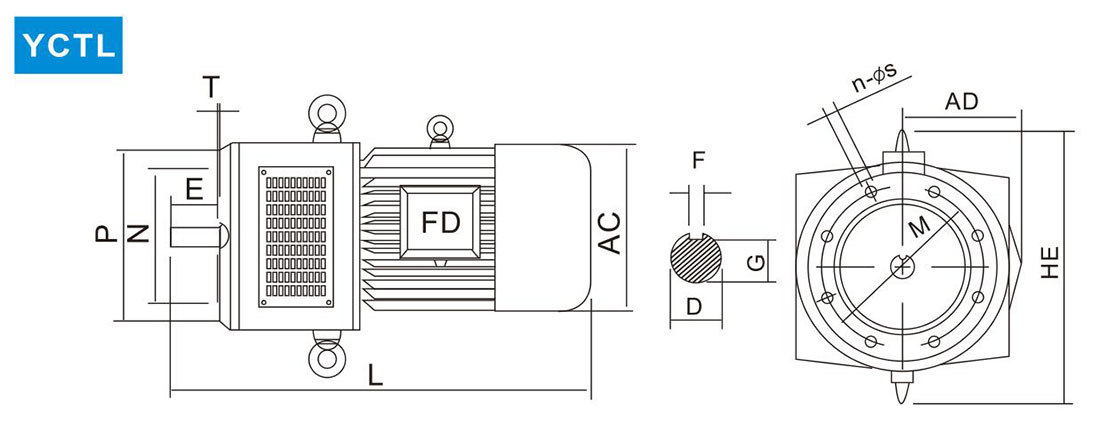

| Type | Mounting Dimension | Overall Dimension | ||||||||||||
| D | E | F | G | M | N | P | n | S | T | AC/2 | AD | HE | L | |
| YCT112-4A | 19 | 40 | 6 | 15.5 | 215 | 180 | 250 | 4 | 15 | 4 | 125 | 150 | 333 | 515 |
| YCT112-4B | 19 | 40 | 6 | 15.5 | 215 | 180 | 250 | 4 | 15 | 4 | 125 | 150 | 333 | 515 |
| YCT132-4A | 24 | 50 | 8 | 20 | 215 | 180 | 250 | 6 | 15 | 4 | 142 | 155 | 391 | 580 |
| YCT132-4B | 24 | 50 | 8 | 20 | 215 | 180 | 250 | 6 | 15 | 4 | 142 | 155 | 391 | 580 |
| YCT160-4A | 28 | 60 | 8 | 24 | 265 | 230 | 300 | 6 | 15 | 4 | 165 | 185 | 445 | 620 |
| YCT160-4B | 28 | 60 | 8 | 24 | 265 | 230 | 300 | 6 | 15 | 4 | 165 | 185 | 445 | 665 |
| YCT180-4A | 28 | 60 | 8 | 24 | 265 | 230 | 300 | 6 | 15 | 5 | 180 | 190 | 485 | 670 |
| YCT200-4A | 38 | 80 | 10 | 33 | 300 | 250 | 350 | 6 | 19 | 5 | 205 | 210 | 530 | 840 |
| YCT200-4B | 38 | 80 | 10 | 33 | 300 | 250 | 350 | 6 | 19 | 5 | 205 | 210 | 530 | 840 |
| YCT225-4A | 42 | 110 | 12 | 37 | 350 | 300 | 400 | 6 | 19 | 5 | 225 | 255 | 582 | 970 |
| YCT225-4B | 42 | 110 | 12 | 37 | 350 | 300 | 400 | 6 | 19 | 5 | 225 | 255 | 582 | 1015 |
| YCT250-4A | 48 | 110 | 14 | 42.5 | 400 | 350 | 450 | 8 | 19 | 5 | 250 | 285 | 642 | 1130 |
| YCT250-4B | 48 | 110 | 14 | 42.5 | 400 | 350 | 450 | 8 | 19 | 5 | 250 | 285 | 642 | 1170 |
| YCT280-4A | 55 | 110 | 16 | 49 | 450 | 400 | 500 | 8 | 19 | 5 | 286 | 320 | 740 | 1270 |
