single-phase capacitor start induction motor
Product description:
JY series single-phase capacitor started asynchronous induction motor is suitable for and places where a larger starting torque and a limited starting current are required, and can be used as driving motor of air compressors, refrigerators, medical apparatus and any other small machines which demand full load starting.These series motors have 3 types of frame sizes 09,1 and 2,are totally enclosed fan-cooled.The frames can be of cast iron or cast aluminum depending on the requests of customers.
PERFORMANCE DATA 220V 50Hz
| Frame | Type | Power | Speed r/min |
Eff % |
Power factor | Locked rotor torque Rated torque |
Breakdown torque Rated torque |
|
| HP | Kw | |||||||
| 2 | JY2A-2 | 1.5 | 1.1 | 2850 | 0.77 | 71 | 2-3.5 | 1.8-2 |
| JY2B-2 | 1 | 0.75 | 2850 | 0.75 | 70 | 2-3.5 | 1.8-2 | |
| JY2A-4 | 1 | 0.75 | 1400 | 0.68 | 69 | 2-3.5 | 1.8-2 | |
| JY2B-4 | 3/4 | 0.55 | 1400 | 0.68 | 67 | 2-3.5 | 1.8-2. | |
| 1 | JY1A-2 | 3/4 | 0.55 | 2800 | 0.72 | 66 | 2-3.5 | 1.8-2 |
| JY1B-2 | 1/2 | 0.37 | 2800 | 0.72 | 66 | 2-3.5 | 1.8-2 | |
| JY1A-4 | 1/2 | 0.37 | 1400 | 0.62 | 64 | 2-3.5 | 1.8-2 | |
| JY1B-4 | 1/3 | 0.25 | 1400 | 0.62 | 60 | 2-3.5 | 1.8-2 | |
| 09 | JY09A-2 | 1/3 | 0.25 | 2800 | 0.72 | 63 | 2-3.5 | 1.8-2 |
| JY09B-2 | 1/4 | 0.18 | 2800 | 0.72 | 60 | 2-3.5 | 1.8-2 | |
| JY09A-4 | 1/4 | 0.18 | 1400 | 0.62 | 56 | 2-3.5 | 1.8-2 | |
Note:" The motor is designed according to powersupplies 220V/1 1 0V ,50Hz,Special design may be accommodatedwith the customers, particular requirements as 230V ,50Hz or 220V/1 10V , 60Hz,etc.

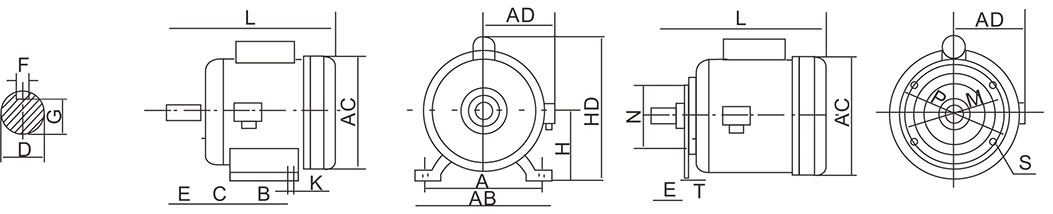

OVERALL&INSTALLATION DIMENSION(mm):
| Frame | Mounting Dimension | Overall Dimension | ||||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | AB | AC | AD | HD | L | |
| 2 | 160 | 112 | 63 | 19 | 40 | 6 | 21.5 | 100 | 12 | 115 | 95 | 140 | 0 | M8 | 3 | 190 | 190 | 128 | 246 | 330 |
| 1 | 140 | 100 | 56 | 16 | 40 | 5 | 18 | 90 | 10 | 100 | 80 | 120 | 0 | M8 | 3 | 176 | 176 | 121 | 220 | 268 |
| 09 | 125 | 100 | 50 | 14 | 30 | 4 | 15.5 | 80 | 10 | 85 | 70 | 105 | 0 | M8 | 3 | 156 | 156 | 108 | 190 | 258 |
Conventional mounting type and suitable frame size :
| Frame | Basic Type | DerivedType | V3 | V5 | V6 | B6 | B7 | B8 | V15 | V36 | B14 | B34 | V18 | ||
| 63~112 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 132~160 | √ | √ | √ | √ | √ | √ | √ | √ | - | - | - | ||||
| 180~280 | - | - | - | - | - | - | - | - | - | - | - | ||||
| 315~355 | - | √ | - | - | - | - | - | - | - | - | - | ||||
Note "√" indicates the structure type that can be manufactured
