ML series

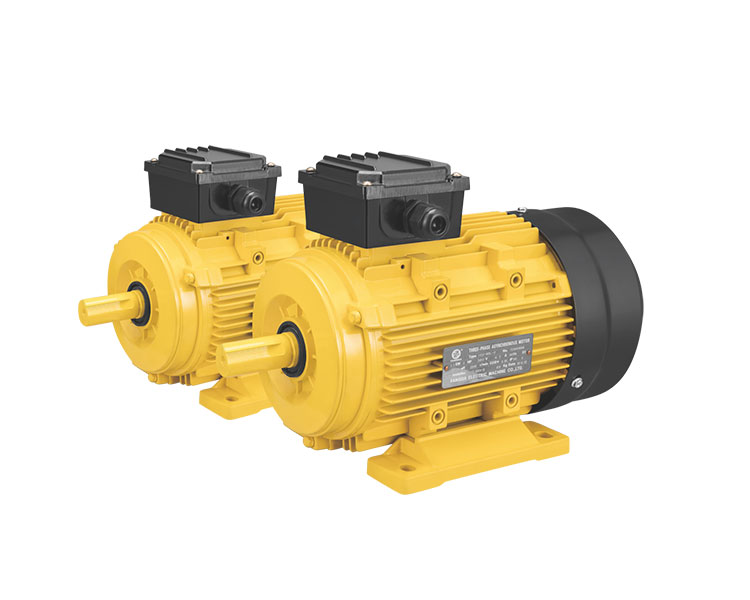

single, Three phase induction motor
single, Three phase induction motor
Product description:
The height of aluminum housing electric motors in our company in 56-160mm.
The motors arrange to single phase and three phase asynchronous motors, the code is "M".
Product Features:
Our electric motors with latest design in entirety, are made of selected quality materials and according to IEC standard.
These motors have good performance, safety little vibration and at the same time light weight and simple construction.
Performance data
Installation Dimension
Mounting arrangements
PERFORMANCE DATA 380V 50Hz
| Type | Power kW |
Current A |
Speed r/min |
Eff % |
Power factor | Locked rotor torque Rated torque |
Locked rotor current Rated current |
Breakdown torque Rated torque |
| Synchronous speed 3000r/min | ||||||||
| ML-63M1-2 | 0.18 | 0.53 | 2720 | 65.9 | 0.80 | 2.3 | 7.0 | 2.2 |
| ML-63M2-2 | 0.25 | 0.69 | 2720 | 69.7 | 0.81 | 2.3 | 7.0 | 2.2 |
| ML-71M1-2 | 0.37 | 0.99 | 2740 | 73.8 | 0.81 | 2.3 | 7.0 | 2.2 |
| ML-71M2-2 | 0.55 | 1.4 | 2740 | 77.8 | 0.82 | 2.3 | 7.0 | 2.2 |
| ML-80M1-2 | 0.75 | 1.8 | 2840 | 80.7 | 0.82 | 2.3 | 7.0 | 2.3 |
| ML-80M2-2 | 1.1 | 2.6 | 2840 | 82.7 | 0.83 | 2.3 | 7.6 | 2.3 |
| ML-90S-2 | 1.5 | 3.4 | 2845 | 84.2 | 0.84 | 2.2 | 7.9 | 2.3 |
| ML-90L-2 | 2.2 | 4.9 | 2845 | 85.9 | 0.85 | 2.2 | 7.9 | 2.3 |
| ML-100L-2 | 3 | 6.3 | 2860 | 87.1 | 0.87 | 2.2 | 8.5 | 2.3 |
| Synchronous speed 1500r/min | ||||||||
| ML-63M1-4 | 0.12 | 0.41 | 1310 | 64.8 | 0.73 | 2.1 | 6.6 | 2.2 |
| ML-63M2-4 | 0.18 | 0.62 | 1310 | 69.9 | 0.74 | 2.1 | 6.6 | 2.2 |
| ML-71M1-4 | 0.25 | 0.79 | 1330 | 73.5 | 0.75 | 2.1 | 6.6 | 2.2 |
| ML-71M2-4 | 0.37 | 1.12 | 1330 | 80.8 | 0.75 | 2.1 | 6.6 | 2.2 |
| ML-80M1-4 | 0.55 | 1.6 | 1390 | 82.5 | 0.75 | 2.4 | 6.6 | 2.3 |
| ML-80M2-4 | 0.75 | 2 | 1390 | 84.1 | 0.76 | 2.3 | 6.6 | 2.3 |
| ML-90S-4 | 1.1 | 2.9 | 1400 | 85.3 | 0.77 | 2.3 | 6.8 | 2.3 |
| ML-90L-4 | 1.5 | 3.7 | 1400 | 86.7 | 0.81 | 2.3 | 7.0 | 2.3 |
| ML-100L1-4 | 2.2 | 5.2 | 1420 | 87.7 | 0.82 | 2.3 | 7.6 | 2.3 |
| ML-100L2-4 | 3 | 6.8 | 1420 | 87.7 | 0.82 | 2.3 | 7.7 | 2.3 |
| Type | Power kW |
Current A |
Speed r/min |
Eff % |
Power factor | Locked rotor torque Rated torque |
Locked rotor current Rated current |
Breakdown torque Rated torque |
| Synchronous speed 1000r/min | ||||||||
| ML-80M1-6 | 0.37 | 1.3 | 885 | 73.5 | 0.71 | 1.9 | 6 | 2.0 |
| ML-80M2-6 | 0.55 | 1.8 | 885 | 77.2 | 0.73 | 1.9 | 6 | 2.1 |
| ML-90S-6 | 0.75 | 2.3 | 910 | 78.9 | 0.73 | 2 | 6 | 2.1 |
| ML-90L-6 | 1.1 | 3.2 | 910 | 81.0 | 0.74 | 2 | 6.5 | 2.1 |
| ML-100L-6 | 1.5 | 3.9 | 920 | 82.5 | 0.74 | 2 | 6.5 | 2.1 |
| Synchronous speed 750r/min | ||||||||
| ML-80M1-8 | 0.18 | 0.88 | 645 | 58.7 | 0.67 | 1.8 | 5.9 | 2.0 |
| ML-80M2-8 | 0.25 | 1.15 | 645 | 64.1 | 0.69 | 1.8 | 6.2 | 2.0 |
| ML-90S-8 | 0.37 | 1.49 | 670 | 69.3 | 0.7 | 1.8 | 6.7 | 2.0 |
| ML-90L-8 | 0.55 | 2.17 | 670 | 73.0 | 0.71 | 1.8 | 6.7 | 2.0 |
| ML-100L1-8 | 0.75 | 2.4 | 680 | 75.0 | 0.73 | 1.8 | 6.7 | 2.0 |
| ML-100L2-8 | 1.1 | 3.4 | 680 | 77.7 | 0.74 | 1.8 | 6.9 | 2.0 |
Can provide different frequency and pressure, dual frequency and dual pressure, etc. according to requirements
OVERALL&INSTALLATION DIMENSION(mm):
| Frame | Pole | Mounting Dimension | Overall Dimension | ||||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | S | T | AB | AC | AD | HD | L | |||
| 63M | 2.4 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | 75 | 95 | 140 | 10 | 2.5 | 130 | 130 | 70 | 180 | 230 | |
| 71M | 2.4.6 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 110 | 160 | 10 | 2.5 | 145 | 145 | 80 | 195 | 255 | |
| 80M | 2.4.6.8 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 130 | 200 | 12 | 3 | 160 | 175 | 145 | 220 | 295 | |
| 90S | 2.4.6.8 | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 130 | 200 | 12 | 3 | 180 | 195 | 155 | 250 | 335 | |
| 90L | 2.4.6.8 | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 130 | 200 | 12 | 3 | 180 | 195 | 155 | 250 | 360 | |
| 100L | 2.4.6.8 | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 130 | 180 | 250 | 15 | 3.5 | 205 | 215 | 180 | 270 | 390 | |
| 112M | 2.4.6.8 | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 130 | 180 | 250 | 15 | 3.5 | 245 | 230 | 240 | 190 | 410 | |
DATA SUBJECT TO CHANGE WITHOUT NOTICE
Conventional mounting type and suitable frame size :
| Frame | Basic Type | DerivedType | |||||||||||||
| V3 | V5 | V6 | B6 | B7 | B8 | V15 | V36 | B14 | B34 | V18 | |||||
| 63~112 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 132~160 | √ | √ | √ | √ | √ | √ | √ | √ | - | - | - | ||||
| 180~280 | - | - | - | - | - | - | - | - | - | - | - | ||||
| 315~355 | - | √ | - | - | - | - | - | - | - | - | - | ||||
Note "√" indicates the structure type that can be manufactured
